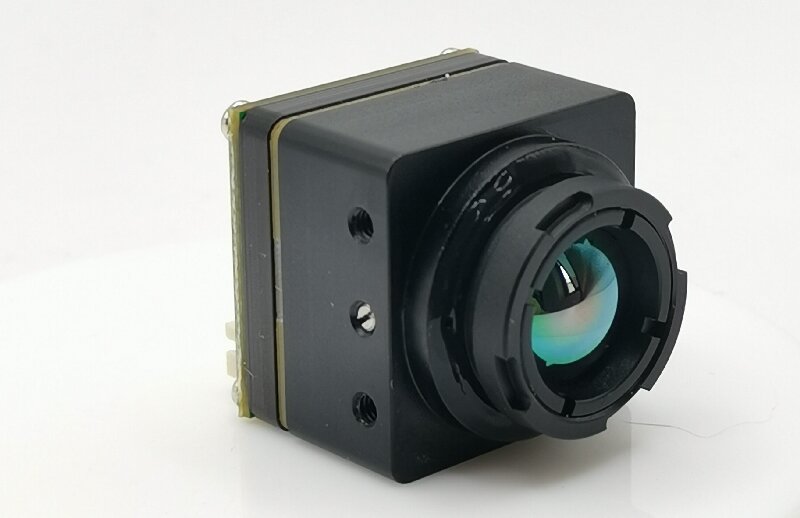

U01-3.6/U01-10 Thermal imaging camera

U01-3.6/U01-10 Thermal imaging camera

Detector Type: Vanadium Oxide non-cooling Infrared Focal Plane Detector

Thermal imaging camera can be used on field equipment such as drones, aircraft and vehicles



Product Details

Thermal imaging camera

Thermal imaging camera can be used on field equipment such as drones, aircraft and vehicles.

Detector Type: Vanadium Oxide non-cooling Infrared Focal Plane Detector

Specification:

Model:U01-3.6U01-10
Thermal sensorSensor   typeVOX
Resolution256×192
Pixel size12μm
Working band8~14μm
NETD≤50mK @25℃,F#1.0,25Hz
Thermal time constant<10ms
Frame rate25Hz
Non-uniformity correctionAutomatic shutter   correction
LensFocusing   methodManual focus
Lens aperture1.0
Focal length3.6mm10.0mm
FOV(H*V)48.9°×36.67°17.46°×13.14°
Focus range> 1m> 3.0m
Detection distanceHuman<340m<944m
vehicle<500m<1389m
Recognition distanceHuman<85m<236m
vehicle<125m<347m
System featuresColor   palettesWhite   hot
Hotspot tracking/
Video outputFormatPAL
Resolution720×576
PowerOperating   voltage5.0V±0.2V
Power consumption0.4W(5V/80mA)
Work/storage environmentOperating   temperature-20℃ ~   +50℃
Storage temperature-30℃ ~   +70℃

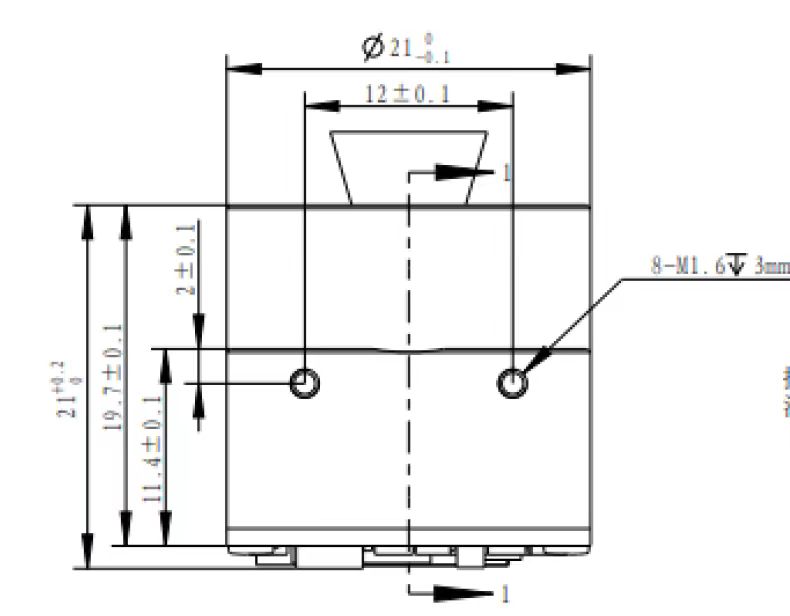

Dimensions/weightSize(Bracket not included)L21*W21*H30mm
Weight(Bracket not included)18g

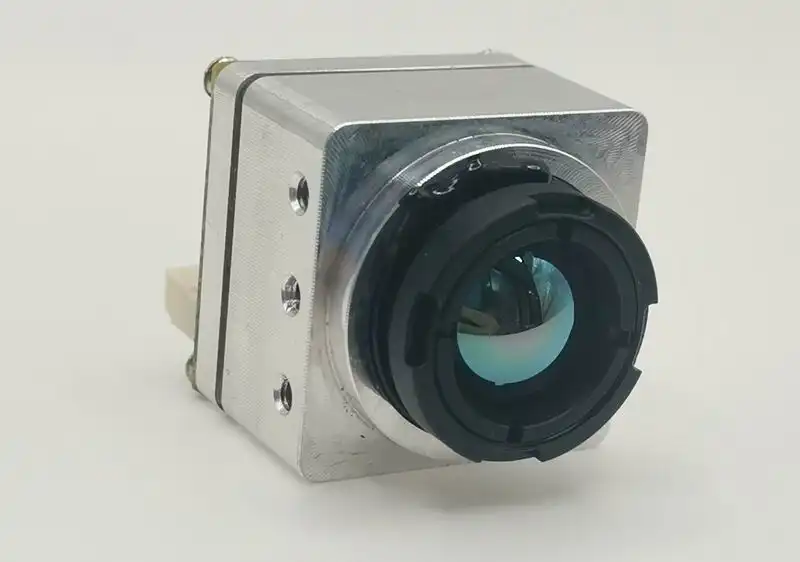

iSUN Thermal imaging camera

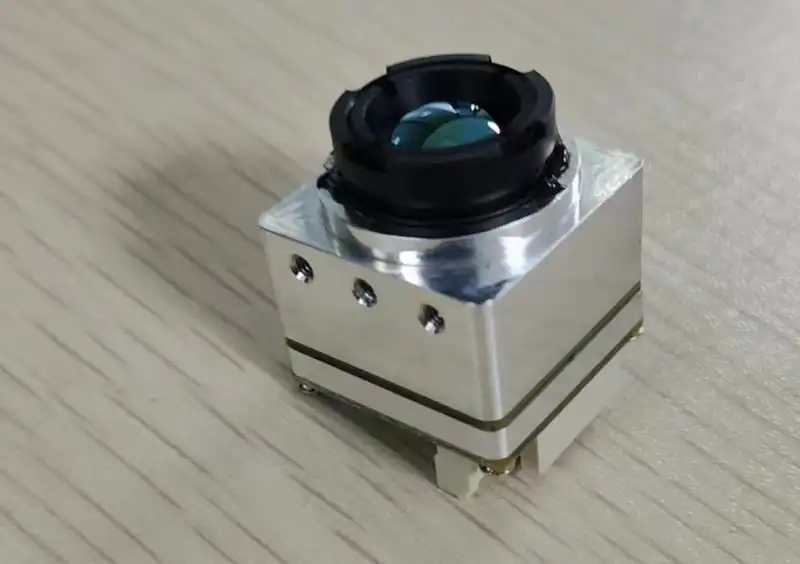

iSUN Thermal imaging camera

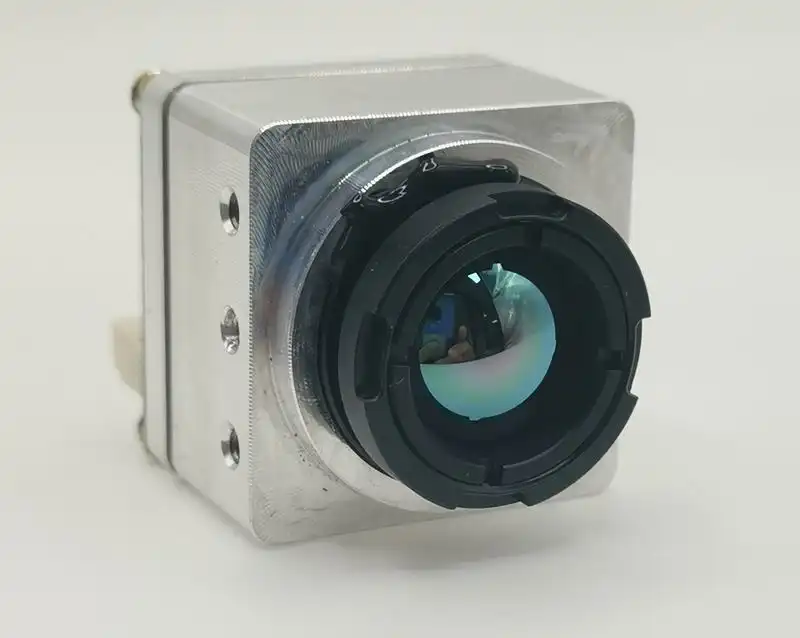

iSUN Thermal imaging camera

iSUN Thermal imaging camera

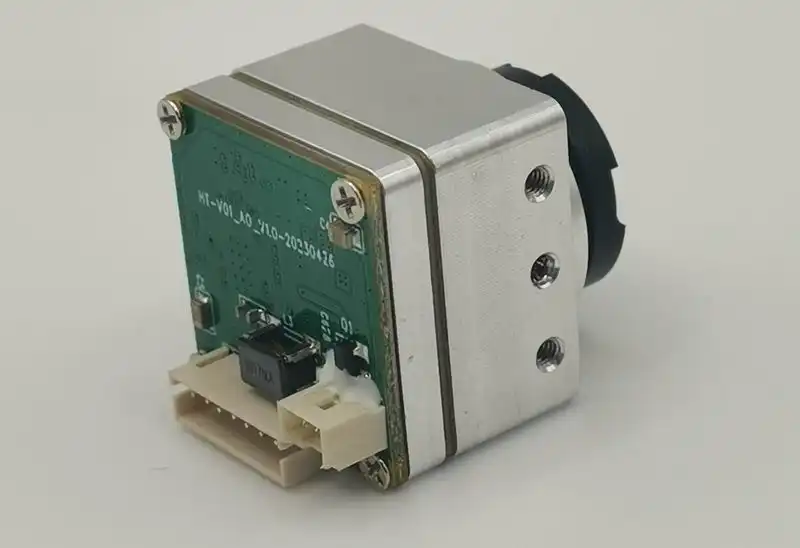

iSun Thermal imaging camera

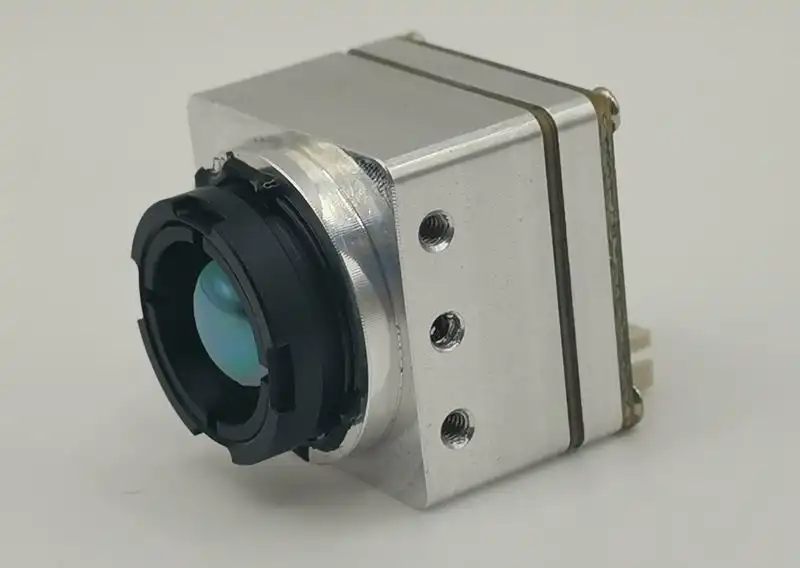

iSun Thermal imaging camera
